Silica Aerogel Blanket Felt Thermal Insulation No Dust 3-20mm Low Thermal Conductivity
Description:
Aerogel Felt Using special nanotechnology, It combines a silica aerogel with reinforcing fibers to deliver very low thermal conductivity,
low density and good flexibility in an environmentally safe product. It provides excellent properties of waterproof, sound absorption
and shock absorption. It is an alternative to the common, environment unfriendly, inferior insulation products, such as PU, asbestos
insulation felt, silicate fibers, etc. Junyue AG series is using alumium foil backed aerogel blanket, which provide the perfect insulation
performance for cold insulation, avoiding wet insulationm.

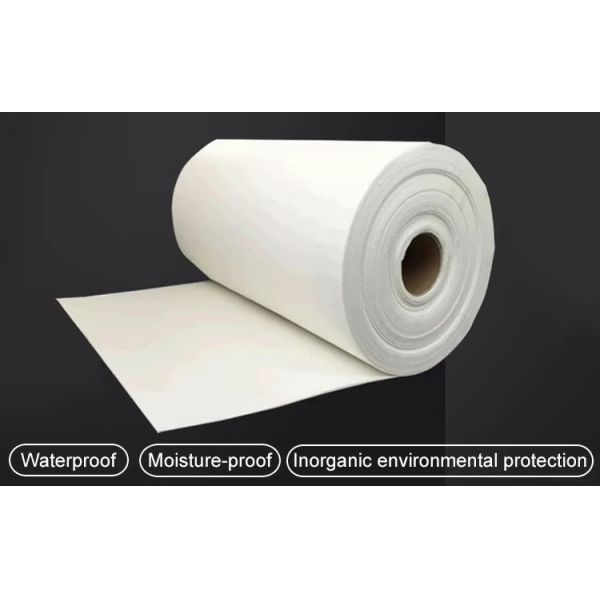

Aerogel Felt is made by compounding Silica aerogel and fiberglass as the basal. It has the characteristics of softness, easy cutting, low density, inorganic fire resistance, overall hydrophobicity, and environmental protection. It can replace glass fiber products, asbestos insulation felt, silicate fiber products and other traditional flexibility that are not environmentally friendly and have poor insulation performance insulation Materials.
Aerogel Blanket is mainly used in industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins,warship bulkheads, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves, high-temperature steam pipelines for heavy oil mining, transportation , Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.
Specification:
|
Item
|
Unit
|
Value
|
Test Method
|
|
Thickness
|
mm
|
3/6/10/20 or others
|
Vernier caliper
|
|
Color
|
--
|
White
|
Visually
|
|
Thermal Conductivity
|
W/(m•K)
|
25℃
|
≤0.018
|
GB/T 10294-2008
|
|
|
％
|
300℃
|
≤0.037
|
|
|
|
Kpa
|
500℃
|
≤0.076
|
|
|
Linear shrinkage
|
％
|
<1.0％
|
ASTM-C177
|
|
Compressive strength
|
％
|
31@10％
|
GB/T 13480-2014
|
|
Chloride ion content
|
％
|
≤0.0003
|
JC/T 618-2005
|
|
Vibration loss rate
|
％
|
0.4
|
GB/T 34336-2017
|
|
Porosity
|
％
|
>95
|
GB/T 1799-2018
|
|
Hydrophobicity
|
％
|
99
|
GB/T 10299-2011
|
|
Bulk density
|
kg/m3
|
160~180
|
GB/T 1799-2018
|
|
Maximum service temperature
|
℃
|
650/1100
|
GB/T 17430-1998
|
|
Combustion rating
|
A grade
|
A1 grade
|
GB 8624-2012
|
Features:

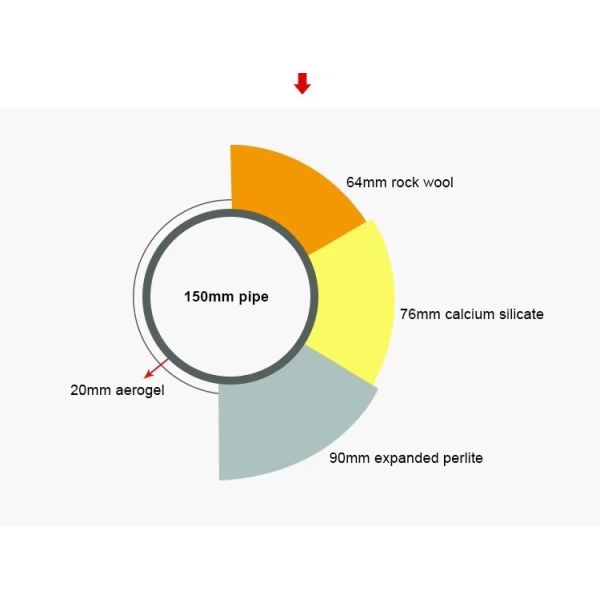

*Aerogel Blankets has excellent thermal insulation – approximately between 2-5 times better than traditional insulation products. This results in wide space for lowering product’s thickness and stability with longer lifetime. *Aerogel Blankets has excellent physical and chemical stability due to silica and glass fiber being the main constituents. These constituents are highly stable and durable at acidic or alkaline mediums and to radiation or electromagnetic waves. *Aerogel Blankets are hydrophobic, mitigates the risk of CUI. *Aerogel Blankets are water repellent. *Aerogel Blankets fire behaviour are incombustible according to A1.
Application:
Aerogel Blanket is mainly used in industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves,high-temperature steam pipelines for heavy oil mining, transportation , Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.
