3-20MM Thickness Fireproof Class A Silica Aerogel Airgel Felt Blanket Roll Heat Resistant For Wall Building Insulation
Aerogel Felt is made by compounding Silica aerogel and fiberglass as the basal. It has the characteristics of softness, easy cutting, low density, inorganic fire resistance, overall hydrophobicity, and environmental protection. It can replace glass fiber products, asbestos insulation felt, silicate fiber products and other traditional flexibility that are not environmentally friendly and have poor insulation performance insulation Materials.
Aerogel Blanket is mainly used in industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins,warship bulkheads, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves, high-temperature steam pipelines for heavy oil mining, transportation , Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.
Aerogel Blanket is one flagship product of our company. It is made by compounding Silica aerogel and fiberglass as the basal. It has excellent insulation property, surface hydrophobicity and flame retardant property. Its thermal conductivity coefficient at the normal temperature is about 0.016W(m.k), which is lower than still air. And its hydrophobic rate can reach 99% under normal temperature. It also has excellent flame retardant performance, the fire rate meets the National Standard A1 level. And its working temperature range is widely. Generally, it can work normally in -200℃-650℃ according to the different requirement. In addition, it is easy to cut and install at construction site.
|
Item
|
Unit
|
Value
|
Test Method
|
|
Thickness
|
mm
|
3/6/10/20 or others
|
Vernier caliper
|
|
Color
|
--
|
White
|
Visually
|
|
Thermal Conductivity
|
W/(m•K)
|
25℃
|
≤0.018
|
GB/T 10294-2008
|
|
|
％
|
300℃
|
≤0.037
|
|
|
|
Kpa
|
500℃
|
≤0.076
|
|
|
Linear shrinkage
|
％
|
<1.0％
|
ASTM-C177
|
|
Compressive strength
|
％
|
31@10％
|
GB/T 13480-2014
|
|
Chloride ion content
|
％
|
≤0.0003
|
JC/T 618-2005
|
|
Vibration loss rate
|
％
|
0.4
|
GB/T 34336-2017
|
|
Porosity
|
％
|
>95
|
GB/T 1799-2018
|
|
Hydrophobicity
|
％
|
99
|
GB/T 10299-2011
|
|
Bulk density
|
kg/m3
|
160~180
|
GB/T 1799-2018
|
|
Maximum service temperature
|
℃
|
650/1100
|
GB/T 17430-1998
|
|
Combustion rating
|
A grade
|
A1 grade
|
GB 8624-2012
|
Advantages:

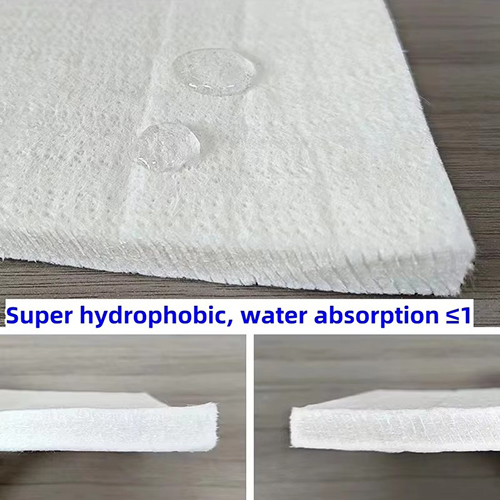

1.Very low thermal coefficient of expansion, Super hydrophobic
2. Low density, Oleophilic (oil absorbent), Suitability for cryogenic implementations
3.Fire resistant, Savings from maintenance costs, Low integration cost, Blocks bacteria and mold growth
Applications:
1.Aerogel Blankets has excellent physical and chemical stability due to silica and glass fiber being the main constituents. These constituents are highly stable and durable at acidic or alkaline mediums and to radiation or electromagnetic waves.
2.Aerogel Blankets has excellent thermal insulation – approximately between 2-5 times better than traditional insulation products. This results in wide space for lowering product’s thickness and stability with longer lifetime.
3.Aerogel Blankets are water repellent.
4.Aerogel Blankets fire behaviour are incombustible according to A1.
5. Aerogel Blankets are hydrophobic, mitigates the risk of CUI.
